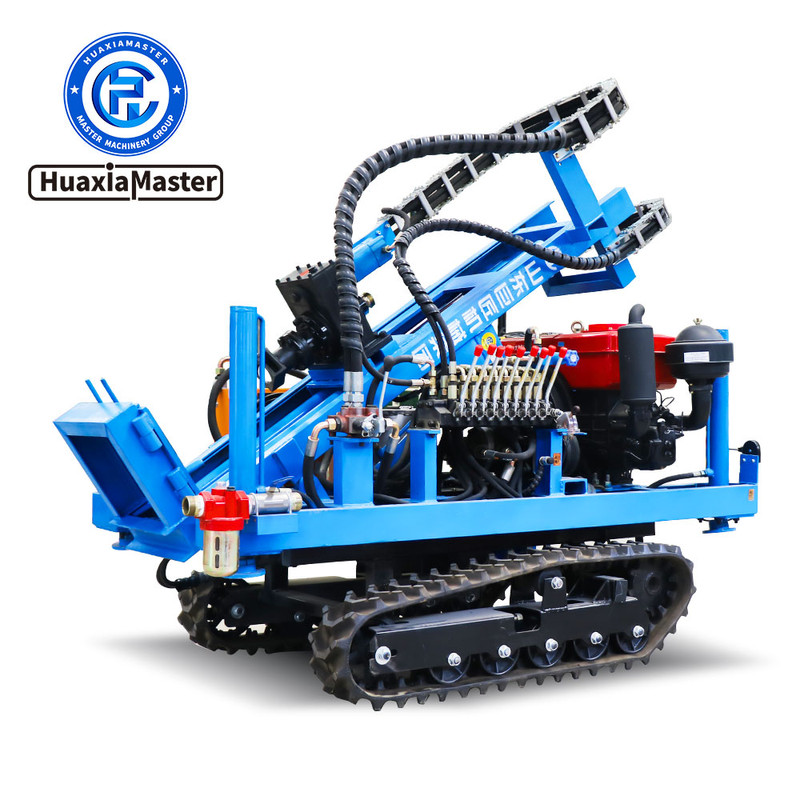

KQZDX Series Crawler Type Air-hydraulic Linkage Down-the-hole Drilling Rig
Цена: по запросу
Минимальный заказ: 1 шт.
- Introduction to KQZDX Series Crawler Type Air-hydraulic Linkage Down-the-hole Drilling Rig
KQZDX series crawler air-hydraulic linkage down-the-hole drilling rig is a highly efficient and flexible small open-pit crawler rock drilling equipment. It uses compressed air to drive the impactor to generate high-frequency impact force on the drill bit. At the same time, the hydraulic motor drives the drill bit to rotate at high speed to achieve efficient rock crushing. It can adapt to a wide range of strata from soft rock to extremely hard rock. It is mainly used in open-pit mine blasting holes, large-scale stone engineering, water conservancy and hydropower construction and other fields. - Features of KQZDX Series Crawler Type Air-hydraulic Linkage Down-the-hole Drilling Rig
2.1 Equipped with crawler walking chassis, no need for manual movement, making it more convenient to move the machine.
2.2 The drilling rig is advanced and lifted by hydraulic cylinder, which makes the work more efficient.
2.3 The drilling frame angle can be adjusted to achieve 35-90° multi-angle drilling construction.
2.4 The power head can rotate forward, reverse and inching to meet various construction requirements.
2.5 The drilling rig is simple and easy to learn, and novices can quickly get started, reducing dependence on manual labor.
2.6 Made of high-strength materials, it has good wear resistance and impact resistance, reducing the cost of repairing and replacing equipment. - Parameters of KQZDX Series Crawler Type Air-hydraulic Linkage Down-the-hole Drilling Rig
Category Specifications Drilling rig category Crawler Type Air-hydraulic Down-the-hole Drilling Rig
Drilling rig model KQZDX-150Y KQZDX-180Y KQZDX-200Y KQZDX-300Y
Performance parameters Applicable rock F=6~20 F=6~20 F=6~20 F=6~20
Drilling diameter 50~200mm 50~200mm 50~200mm 50~200mm
Drilling depth 20-50m 20-50m 20-50m 50m
Drilling speed 0-140r/min 0-140r/min 0-140r/min 0-140r/min
Maximum propulsion force 2000N 2000N 2000N 6000N
Advancement 1500mm 1500mm 1500mm 2500mm
Lifting height 2800mm 2800mm 2800mm 3800mm
Machine parameters Chassis Rubber crawler hydraulic walking chassis Rubber crawler hydraulic walking chassis Rubber crawler hydraulic walking chassis Rubber crawler hydraulic walking chassis
Machine power Motor Motor Single cylinder 680 diesel engine Four-cylinder diesel engine
power 11kW/380V 15kW/380V 23.5kW 51kW
Vehicle weight 920KG 950KG 980KG 1500KG
Machine size 2300*1100*1750mm 2320*1100*1750mm 2350*1100*1770mm 2400*1400*1900
Hydraulic outriggers Four pieces (Optional) Four pieces (Optional) Four pieces (Standard) Four pieces (Standard)
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
Бренд: HUAXIAMASTER
Модель: KQZDX-150Y KQZDX-180Y KQZDX-200Y KQZDX-300Y
Страна: 中国
Вес: 6200 кг
Размеры: 450/210/250
Гарантия производителя: есть
Чтобы купить KQZDX Series Crawler Type Air-hydraulic Linkage Down-the-hole Drilling Rig оптом по цене по запросу, свяжитесь с поставщиком. Компания поставщик — Master (Jining) Heavy Industry Machinery Co Ltd из города Гонконг (Central and Western). Минимальная сумма оптового заказа: 1000000 руб. Минимальная партия 1 шт. Способы оплаты: наличными, безналичная оплата, кредитные карты, электронные деньги.
