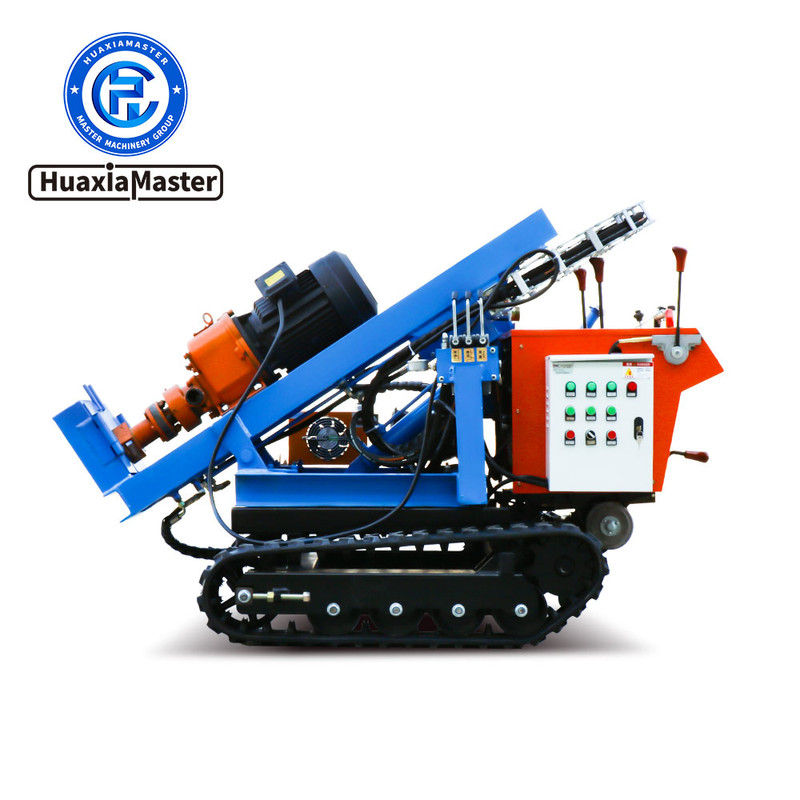

KQZDX Series Crawler Air-electric Linkage Down-the-hole Drilling Rig
Цена: по запросу
Минимальный заказ: 1 шт.
- Introduction to KQZDX Series Crawler Air-electric Linkage Down-the-hole Drilling Rig
KQZDX series crawler air-electric linkage down-the-hole drilling rig is a highly efficient and flexible small open-pit crawler rock drilling equipment. It uses compressed air to drive the impactor to generate high-frequency impact force on the drill bit. At the same time, the electric motor drives the drill bit to rotate at high speed to achieve efficient rock crushing. It can adapt to a wide range of strata from soft rock to extremely hard rock. It is mainly used in open-pit mine blasting holes, large-scale stone engineering, water conservancy and hydropower construction and other fields. - Features of KQZDX Series Crawler Air-electric Linkage Down-the-hole Drilling Rig
2.1 Equipped with crawler walking chassis, no need for manual movement, making it more convenient to move the machine.
2.2 The drilling rig is advanced and lifted by hydraulic cylinder, which makes the work more efficient.
2.3 The drilling frame angle can be adjusted to achieve 35-90° multi-angle drilling construction.
2.4 The power head can rotate forward, reverse and inching to meet various construction requirements.
2.5 The drilling rig is simple and easy to learn, and novices can quickly get started, reducing dependence on manual labor.
2.6 Made of high-strength materials, it has good wear resistance and impact resistance, reducing the cost of repairing and replacing equipment. - Parameters of KQZDX Series Crawler Air-electric Linkage Down-the-hole Drilling Rig
Category Specifications Drilling rig category Crawler Type Air-electric Down-the-hole Drilling Rig
Drilling rig model KQZDX-100D KQZDX-100DS KQZDX-120D
Performance parameters Applicable rock F=6~20 F=6~20 F=6~20
Drilling diameter 50~150mm 50~150mm 50~150mm
Drilling depth 25~30m 25~30m 30~35m
Advancement 1500mm 1500mm 1500mm
Lifting height 2800mm 2800mm 2800mm
Machine parameters Chassis Rubber crawler mechanical walking chassis Rubber crawler mechanical walking chassis Rubber crawler mechanical walking chassis
Chassis travel power Single cylinder 8HP diesel engine Single cylinder 8HP diesel engine Single cylinder 8HP diesel engine
Hydraulic pump drive motor 4kW/380V 4kW/380V 4kW/380V
Motor 4kW/380V 5.5kW/380V 7.5kW/380V
Machine weight 540kg 550kg 560kg
Machine size 1800*1000*1550mm 1800*1000*1550mm 1800*1000*1550mm
Hydraulic outriggers Four pieces (Optional) Four pieces (Optional) Four pieces (Optional)
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
Бренд: HUAXIAMASTER
Модель: KQZDX-100D KQZDX-100DS KQZDX-120D
Страна: 中国
Вес: 6200 кг
Размеры: 450/210/250
Гарантия производителя: есть
Чтобы купить KQZDX Series Crawler Air-electric Linkage Down-the-hole Drilling Rig оптом по цене по запросу, свяжитесь с поставщиком. Компания поставщик — Master (Jining) Heavy Industry Machinery Co Ltd из города Гонконг (Central and Western). Минимальная сумма оптового заказа: 1000000 руб. Минимальная партия 1 шт. Способы оплаты: наличными, безналичная оплата, кредитные карты, электронные деньги.
