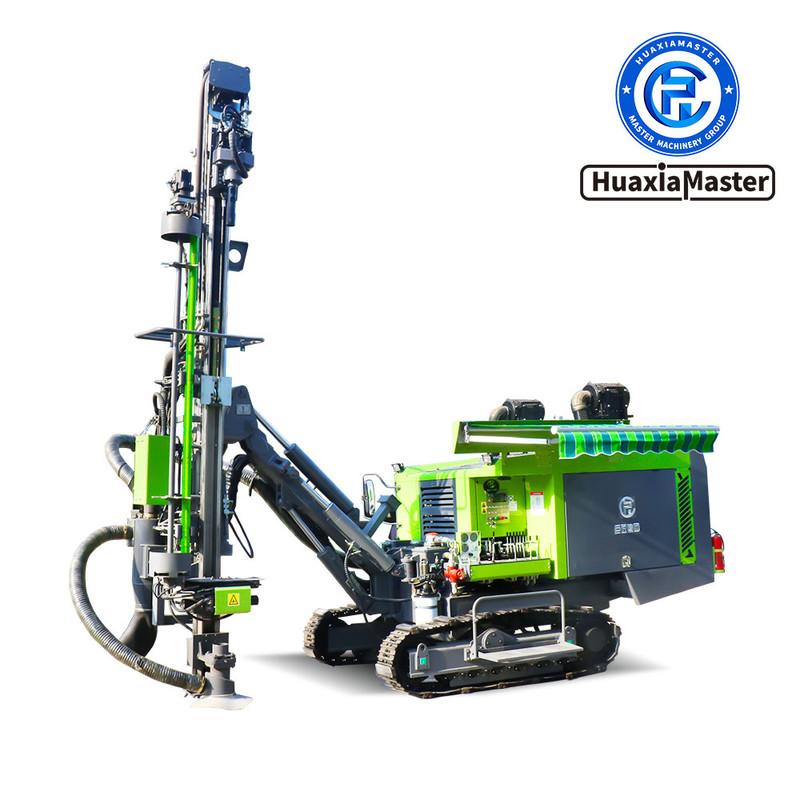

KQZD Series Down-the-hole Drilling Rig

1. Introduction to KQZD Series Down-the-hole Drilling Rig
   The KQZD series down-the-hole drilling rig is an efficient and flexible open-pit crawler rock drilling equipment. It transmits impact energy to the drill bit through the impactor. The drill bit rotates at high speed while impacting the rock at high frequency. Compressed air discharges the drilled rock cuttings out of the hole, realizing the synchronous operation of “impact-rotation-slag discharge”. The down-the-hole drilling vehicle has excellent mobility and off-road capability, adapts to all-terrain operations, and can quickly and flexibly transfer in complex terrain. It is mainly used in open-pit mine blasting holes, large-scale stone engineering, water conservancy and hydropower construction and other fields. The Jujiang down-the-hole drill rig is an efficient and reliable choice for hard rock deep hole operations

2. Features of KQZD Series Down-the-hole Drilling Rig
   2.1 It adopts steel track chassis and has good off-road performance.
   2.2 Some models of crawler frames are equipped with pitch cylinders, which can freely adjust the center of gravity of the vehicle body to ensure stability and safety when drilling on uneven terrain.
   2.3 The drill arm and drill frame are equipped with a full set of adjustment cylinders, which can easily adjust the drilling angle in all directions.
   2.4 Equipped with high-power engine and advanced hydraulic system, it is stable, reliable and powerful.
   2.5 The combination of down-the-hole impact and hydraulic rotation can greatly improve the hard rock drilling speed.
   2.6 The dry dust collector (optional) can significantly reduce the dust concentration in the construction environment, protect the health of workers, and extend the life of equipment.
   2.7 The drilling rig is simple and easy to learn to operate, so novices can quickly get started and reduce dependence on manual labor.
   2.8 It adopts heavy-duty structural design, key parts are shock-proof and wear-resistant, with long service life and low failure rate.‌‌

3. Parameters of KQZD Series Down-the-hole Drilling Rig
   Drilling vehicle model KQZD-H4A KQZD-416 KQZD-420B KQZD-420S KQZD-430 KQZD-593
   Machine parameters Drilling machine category Split machine Split machine Split machine Split machine Split machine Split machine
   Air compressor / / / / / /
   Machine weight 3.8T 4.25T 4.25T 5.34T 6.05T 6.34T
   Machine size 4700*2080*2300mm 4900*2000*2200mm 4900*2100*2200mm 6500*2280*2400mm 7370*2360*2560mm 7000*2280*2400mm
   Gradeability 25° 25° 25° 25° 25° 25°
   Track frame swing angle / / +-10° / +-10° +-10°
   Walking speed 2.5km/h 2.5km/h 2.5km/h 2.5km/h 3km/h 4km/h
   Power parameters Diesel engine model Yuchai YCD4R22T-8 Yuchai YCD4DK80 Yuchai YCD4R22T-8 Yuchai YCD4DK80-T302 Yuchai YC4DK-100 Yuchai YC4DK100-T304
   Diesel engine power 60kW 58kW 60kW 78kW 73.5kW 88kW
   Motor power / / / 55kW / /
   Working Parameters Power head Single cycloid hydraulic motor Double cycloid hydraulic motor Double cycloid hydraulic motor Double cycloid hydraulic motor Double cycloid hydraulic motor Double cycloid hydraulic motor
   Rotation speed 0~200rpm 0~150rpm 0~120rpm 0~140rpm 0~100rpm 0~160rpm
   Rotational torque 1650N. m 1950N.m 2000N. m 2000N.m 2000N. m 2000N.m
   Ways of advancement Hydraulic cylinder chain Hydraulic cylinder chain Hydraulic cylinder chain Hydraulic cylinder chain Hydraulic cylinder chain Hydraulic motor chain
   Propulsion 25kN 25kN 15kN 35kN 20kN 55kN
   Lifting force 15kN 15kN 25kN 80kN 45kN 90kN
   Drill pipe specifications 64*2000mm 64*3000mm ⁶⁴⁄₇₆*3000mm 76*3000mm 76*3000mm 64/76/89*3000mm
   Drilling diameter 90~100mm 90~127mm 90~130mm 90~203mm 90~130mm 90~254mm
   Drilling depth 30m 30m 30~40m 30~40m 30~40m 60m
   Applicable rock strength F=6~20 F=6~20 F=6~20 F=6~20 F=6~20 F=6~20
   Air consumption 10-18m³/min 10-18m³/min 10-18m³/min 10-18m³/min 10-20m³/min 14~35 m3/min
   Packages Is a dry dust collector included No No No No No No
   Supporting drilling tools 20m φ60 drill rod,
   1 low-pressure 90 impactor,
   1 φ90 down-the-hole drill bit 20m φ64 drill rod,
   1 low-pressure 90 impactor,
   1 φ90 down-the-hole drill bit 20m φ76 drill pipe,
   1 low-pressure 90 impactor,
   1 φ90 down-the-hole drill bit 20m φ76 drill pipe,
   1 set of high-pressure 45A impactor,
   1 φ115 down-the-hole drill bit 20m φ76 drill pipe,
   1 set of high-pressure 45A impactor,
   1 φ115 down-the-hole drill bit 20m φ76 drill pipe,
   1 set of high-pressure 45A impactor,
   1 φ115 down-the-hole drill bit
   Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.



Drilling vehicle model KQZD-103YT KQZD-843YT KQZD-720 KQZD-712 KQZD-726
Machine parameters Drilling rig category All-in-one machine All-in-one machine Split machine Split machine Split machine
Air compressor ¹⁵⁄₁₈ ¹⁴⁄₁₇ / / /
Machine weight 10T 9.5T 6.2T 5.3T 4.1T
Machine size 8800*2600*2300mm 8400*2400*2300mm 6000*2270*2600mm 5550*2290*2600mm 5500*2050*2200mm
Gradeability 25° 25° 25° 25° 25°
Track frame swing angle +-10° +-10° +-10° +-10° /
Walking speed 3.5km/h 3.5km/h 3km/h 3km/h 2.5km/h
Power parameters Diesel engine model Yuchai National III six-cylinder Cummins National 26 Cylinder Yuchai National Three and Four Cylinders Yuchai National 24-cylinder Yuchai YCD4T22T-105A
Diesel engine power 176kW 154kW 73.5kW 70kW 78kW
Motor power / / / / /
Working Parameters Power head Double cycloid hydraulic motor Double cycloid hydraulic motor Double cycloid hydraulic motor Double cycloid hydraulic motor Double cycloid hydraulic motor
Rotation speed 0~120r/min 0~100r/min 0~180r/min 0-140r/min 0~150rpm
Rotational torque 2000N. m 2200N.m 3000N. m 2200N.m 2200N. m
Ways of advancement Aluminum alloy beam + hydraulic motor propulsion Hydraulic motor chain Hydraulic cylinder chain Hydraulic cylinder chain Hydraulic cylinder chain
Propulsion 12kN 12kN 20kN 15kN 15kN
Lifting force 18kN 18kN 45kN 25kN 25kN
Drill pipe specifications Self-changing rod 6+1, Φ64*3000mm 64*3000mm 76*3000mm Φ64/76*3000mm 64*3000mm
Drilling diameter 90~130mm 90~115mm 90~300mm 90~130mm 90~130mm
Drilling depth 21m 21m 30m 35m 30m
Applicable rock strength F=6~20 F=6~20 F=6~20 F=6~20 F=6~20
Air consumption 15m³/min 14m³/min 14~35 m3/min 10-18m³/min 10-18m³/min
Packages Is a dry dust collector included Yes Yes No No No
Supporting drilling tools 21m φ64 drill rod,
1 high-pressure 45A impactor,
1 φ115 down-the-hole drill bit 21m φ64 drill rod,
1 high-pressure 45A impactor,
1 φ115 down-the-hole drill bit 20m φ76 drill pipe,
1 high-pressure 45A impactor,
1 φ115 down-the-hole drill bit 20m φ76 drill pipe,
1 low-pressure 90 impactor,
1 φ90 down-the-hole drill bit 20m φ64 drill rod,
1 low-pressure 90 impactor,
1 φ90 down-the-hole drill bit
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
