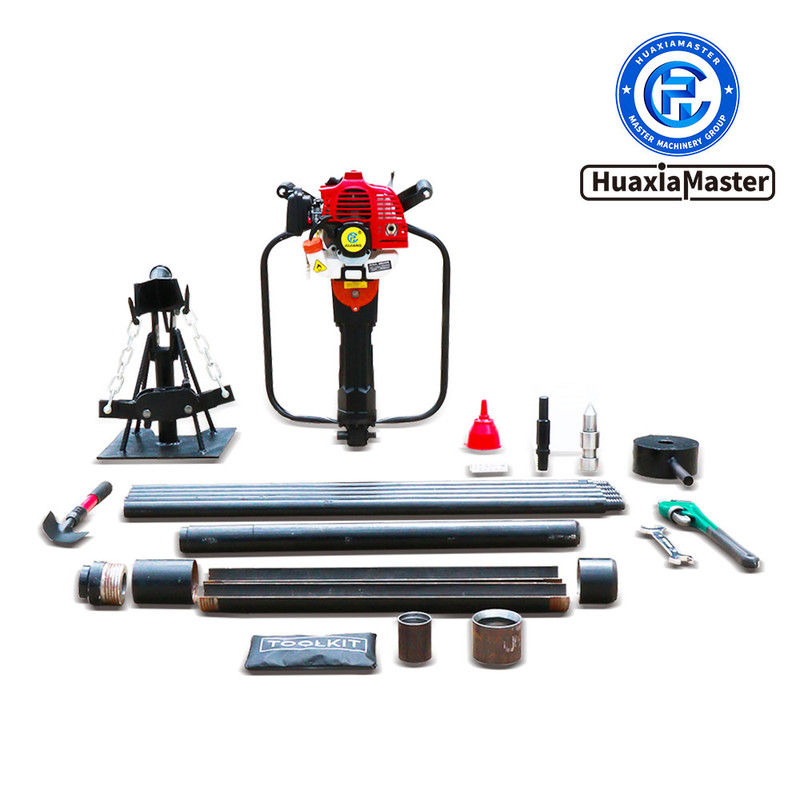

QTZ Series Portable Soil Sampling Drilling Rig

1、Introduction to QTZ Series Soil Sampling Drilling Rig
QTZ series soil sampling drilling rig is a portable one-person soil sampling drilling rig, which is mainly suitable for environmental soil survey, soil structure description and so on. The drilling rig relies on the high-frequency impact force generated by itself to inject the soil extractor into the soil, and then extracts the soil extractor from the soil through the extractor.
2、Features Of QTZ Series Soil Sampling Drilling Rig
2.1 Strong impact force, stable performance.
2.2 Simple operation and high safety.
2.3 There are gasoline engine models, diesel engine models, electric motor models and hydraulic pump station models, providing more variety in choices.
2.4 The drilling rig is simple in structure, small in volume and light in weight, which is convenient for assembly, handling and disassembly.
3、Parameters of QTZ Series Soil Sampling Drilling Rig
Model QTZ-1 QTZ-2 QTZ-3 QTZ-3D QTZ-4 QTZ-4Y
Engine Gasoline engine Two-phase electric motor Diesel engine
Soil extractor dia 50/70mm
Sampling depth 5~10m 10~15m 15~20m 15~20m 20~25m 20~25m
Host weight 23KG 25KG 26KG 22KG 35kg 40kg
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
