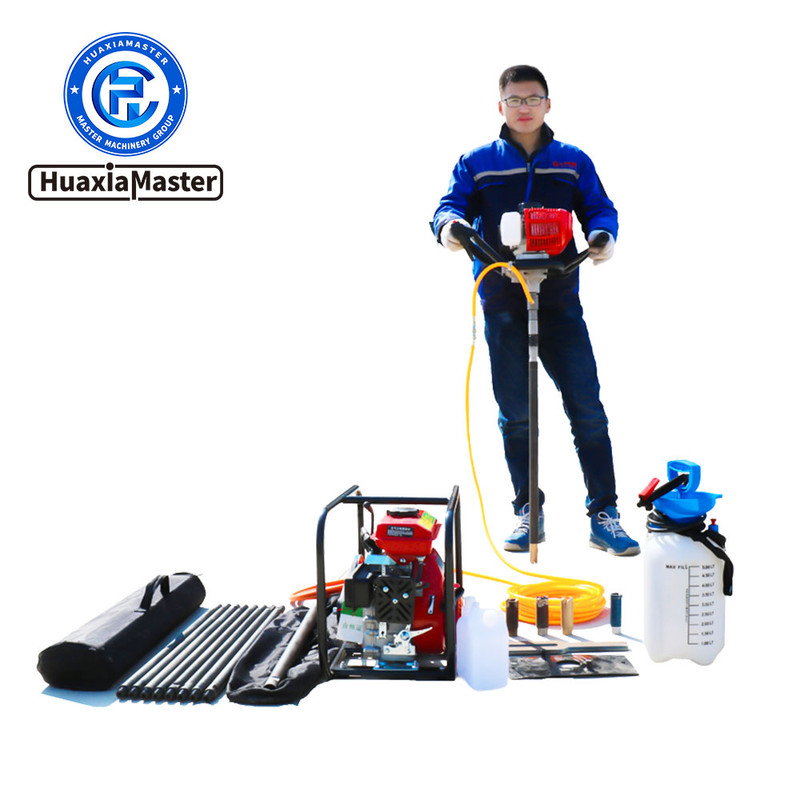

BXZ Series Backpack Core Drilling Rig

1、Introduction to BXZ Series Backpack Core Drilling Rig
BXZ series backpack drilling rig is a portable core drilling rig with backpack, which is mainly suitable for borehole sampling in shallow geological exploration such as mineral exploration, geological research and engineering exploration in mountainous areas where transportation and energy are inconvenient.。‌
2、Features of BXZ Series Backpack Core Drilling Rig
2.1 Compact structure, small size, light weight, easy to carry.
2.2 Using well-known brand gasoline engine, energy saving and high efficiency, the quality of drilling rig is guaranteed.
2.3 Equipped with high quality drill pipe and bit, it is durable and more efficient.
3、Parameters of BXZ Series Backpack Core Drilling Rig
Model BXZ-1 BXZ-1L BXZ-1C BXZ-2 BXZ-2L
Style One-person handrail Steel column type One-person handrail Two-person handrail Steel column type
Engine brand Mitsubishi Mitsubishi Hengyue Kohler Kohler
Power 3.2HP 3.2HP 3HP 7.75HP 7.75HP
Drill pipe 32*700mm 32*700mm 25*800mm 32*700mm 32*800mm
Hole diameter 33-46mm 33-46mm 26-36mm 33-120mm 33-120mm
Max.sampling depth 20m 20m 15m 20m 30m
Host weight 8kg 25kg 12kg 30kg 50kg
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
