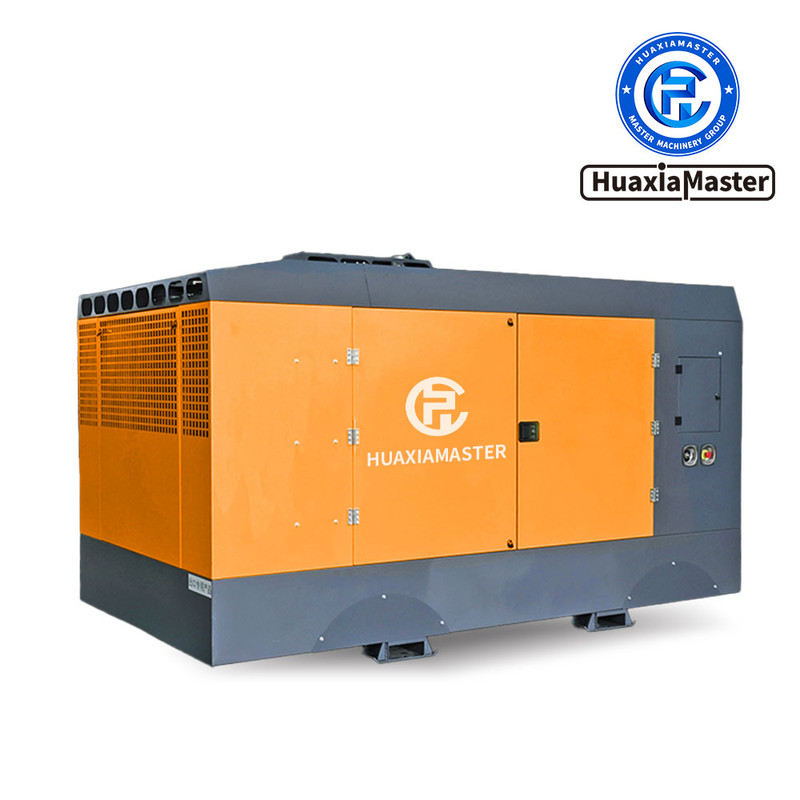

HUAXIAMASTER Screw Air Compressor
Цена: по запросу
Минимальный заказ: 1 шт.
- Introduction to HUAXIAMASTER Screw Air Compressor
A HUAXIAMASTER screw air compressor is a rotary positive-displacement compressor. It continuously draws in and compresses air through precisely meshed rotors to achieve efficient and stable power output. With excellent power performance, the machine can work normally in harsh environments such as extreme cold and heat. It is widely used in engineering fields like mining, water conservancy projects, tunnel engineering, road and bridge construction, etc., due to its outstanding performance.
2.Features of HUAXIAMASTER Screw Air Compressor
2.1 Strong Adaptability: The forced gas transmission design ensures a stable volumetric flow even when the discharge pressure fluctuates, adapting to the needs of complex working conditions.
2.2 Low-Noise Operation: The high-precision rotors and silent outer cover design effectively reduce mechanical friction and operating noise.
2.3 Excellent Performance: Equipped with high-performance power, it delivers stable output.
2.4 High Efficiency and Energy Saving: The screw compression has high efficiency with little energy loss, supports high-pressure output, and significantly reduces energy consumption.
2.5 Durable: It features a simple structure, easy maintenance, and a long service life.
2.6 Easy Operation: With a high degree of automation, operators can quickly get started after simple training.
2.7 Convenient Mobility: It can be equipped with a tire or crawler chassis, facilitating transportation and transfer in various terrains. - Parameters of HUAXIAMASTER Screw Air Compressor
Product Name Model Displacement (m³/min) Discharge Pressure (Mpa) Working Form Power machine Power Total Weight
(kg) Overall Dimensions
(mm)
HUAXIAMASTER
Electric Fixed Air Compressor LGDG-3.6⁄8 3.6 0.8 Single-stage Motor 22kW 430 1080*850*1210
LGDG-6⁄8 6 0.8 Single-stage Motor 37kW 620 1340*1000*1300
LGDG-10⁄8 10 0.8 Single-stage Motor 55kW 920 1630*1150*1400
LGDY-5⁄8 5 0.8 Single-stage Motor 30kW 485 1620*860*1100
HUAXIAMASTER
Electric Mobile Air Compressor LGDY-16⁄10 16 1.0 Single-stage Motor 90kW*1400*1800
LGDY-13⁄14 13 1.4 Single-stage Motor 90kW*1400*1800
LGDY-15⁄17 15 1.7 Single-stage Motor 90kW*1700*2050
LGDY-20⁄13 20 1.3 Single-stage Motor 132kW*1700*2050
LGDY-19⁄17 19 1.7 Single-stage Motor 185kW*1950*2650
LGDY-16⁄18 16 1.8 Two-stage Motor 110kW*1700*2050
LGDY-21⁄18 21 1.8 Two-stage Motor 132kW*1700*2050
LGDY-23⁄18 23 1.8 Two-stage Motor 132kW*1700*2050
LGDY-24⁄20 24 2.0 Two-stage Motor 185kw*1950*2650
HUAXIAMASTER
Diesel Mobile Air Compressor LGCY-13⁄8 13 0.8 Single-stage Cummins Diesel Engine 150hp*1700*1800
LGCY-10⁄10 10 1.0 Single-stage Cummins Diesel Engine 150hp*1700*1800
LGCY-12⁄10 12 1.0 Single-stage Cummins Diesel Engine 150hp*1700*1800
LGCY-15⁄13 15 1.3 Single-stage Cummins Diesel Engine 190hp*1700*1800
LGCY-15⁄15 15 1.5 Single-stage Cummins Diesel Engine 190hp*1700*1800
LGCY-15⁄17 15 1.7 Single-stage Yuchai Diesel Engine 190hp*1700*2050
LGCY-16⁄15 16 1.5 Single-stage Yuchai Diesel Engine 190hp*1700*2050
LGCY-17⁄17 17 1.7 Single-stage Yuchai Diesel Engine 220hp*1700*2050
LGCY-18⁄17 18 1.7 Single-stage Yuchai Diesel Engine 220hp*1700*2050
LGCY-17⁄18-18⁄15 17 or 18 1.8 or 1.5 Two-stage & Dual-mode Yuchai Diesel Engine 190hp*1700*2050
LGCY-18⁄17-19⁄14 18 or 19 1.7 or 1.4 Two-stage & Dual-mode Yuchai Diesel Engine 220hp*1700*2050
LGCY-18⁄18-20⁄14 18 or 20 1.8 or 1.4 Two-stage & Dual-mode Yuchai Diesel Engine 220hp*1700*2050
LGCY-19⁄20-22⁄17 19 or 22 2.0 or 1.7 Two-stage & Dual-mode Yuchai Diesel Engine 260hp*1900*2250
LGCY-20⁄18-24⁄14 20 or 24 1.8 or 1.4 Two-stage & Dual-mode Yuchai Diesel Engine 260hp*1900*2250
LGCY-21⁄21-23⁄15 21 or 23 2.1 or 1.5 Two-stage & Dual-mode Yuchai Diesel Engine 260hp*1900*2250
HUAXIAMASTER
Diesel Fixed Air Compressor LGCG-13⁄8 13 0.8 Single-stage Cummins Diesel Engine 150hp*1700*1500
LGCG-10⁄10 10 1.0 Single-stage Cummins Diesel Engine 150hp*1700*1500
LGCG-15⁄15 15 1.5 Single-stage Cummins Diesel Engine 190hp*1700*1500
LGCG-15⁄17 15 1.7 Single-stage Yuchai Diesel Engine 190hp*1700*1750
LGCG-17⁄17 17 1.7 Single-stage Yuchai Diesel Engine 220hp*1700*2050
LGCG-18⁄17 18 1.7 Single-stage Yuchai Diesel Engine 220hp*1700*1750
LGCG-29⁄23-33⁄18 29 or 33 2.3 or 1.8 Two-stage & Dual-mode Cummins Diesel Engine 400hp*1950*2700
LGCG-31⁄32-33⁄15 31 or 33 3.2 or 1.5 Two-stage & Dual-mode Cummins Diesel Engine 400hp*1950*2750
LGCG-31⁄25-33⁄18 31 or 33 2.5 or 1.8 Two-stage & Dual-mode Cummins Diesel Engine 400hp*1950*2700
LGCG-36⁄30-42⁄20 36 or 42 3.0 or 2.0 Two-stage & Dual-mode Cummins Diesel Engine 550hp*2000*2850
Note: Products are continuously improved. For any changes, no separate notice will be given. Please refer to the actual product.
