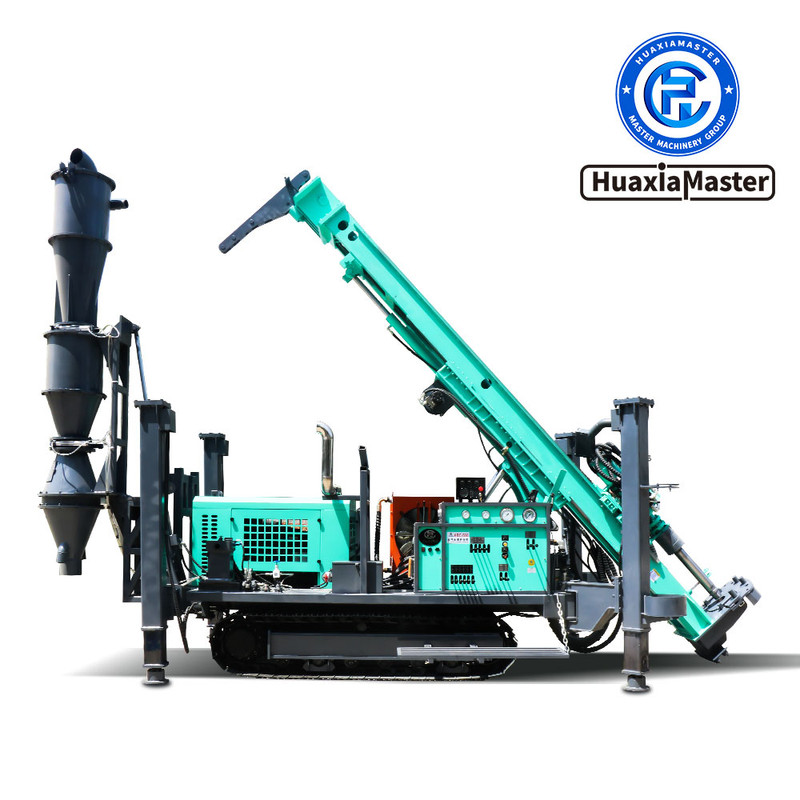

ARC Series Air Reverse Circulation Drilling Rig
1、Introduction to ARC Series Air Reverse Circulation Drilling Rig
ARC series air reverse circulation drilling rig is a new, efficient and environmentally friendly geological drilling equipment. It uses the latest air reverse circulation drilling technology from Master Research Institute, compressed air is used as the circulating medium to quickly discharge，the cuttings from the bottom of the hole through reverse circulation. Rock cuttings and dust are effectively collected and sorted through dust collectors，avoid sample contamination，ensure the accuracy of sample data. The drilling rig is mainly used in mineral exploration, hydrogeological exploration, engineering geological exploration and other fields, suitable for various geographical environments，including complex environments such as thin air at high altitudes, thick permafrost, and abundant groundwater. It is the preferred equipment for geological exploration drilling and other deep hole operations.
2、Features of ARC Series Air Reverse Circulation Drilling Rig
2.1 Efficient drilling: The air reverse circulation drill uses a closed circulation system to quickly discharge cuttings, reduce repeated crushing, and significantly increase drilling speed.
2.2 High sample quality: The rock chip dust samples obtained through air reverse circulation drilling are free from contamination, easy to classify and track, and can accurately locate the mineralization location.
2.3 Green and environmentally friendly: Using compressed air as the circulating medium, compared with traditional mud drilling rigs, it does not require a large amount of water and chemicals during the construction process, reducing pollution to the environment.
2.4 Full hydraulic operation: drilling rig lifting, power head rotation and feeding, drill rod connection and unloading and other actions are all realized by the hydraulic system, which greatly reduces labor intensity and improves construction efficiency.
2.5 Low maintenance cost: The air reverse circulation drilling rig has a simple structure, and key components are made of high-strength materials with strong wear resistance and corrosion resistance, which reduces the replacement frequency of wearing parts and has low maintenance costs.
2.6 Reliable power: adopt big brand diesel engine, strong power, stable performance and perfect after-sales service.
3、Parameters of ARC Series Air Reverse Circulation Drilling Rig
Drilling rig model ARC-200 ARC-300 ARC-500 ARC-800 ARC-1200
Overall machine parameters Vehicle weight 6T 7.5T 9.5T 17T 23T
Shipping dimensions 6000*1750*2350mm 6750*2200*2550mm 6750*2200*2650mm 10500*2250*3300mm 11500*2250*3400mm
Chassis Engineering steel tracks
Hydraulic walking chassis Engineering steel tracks
Hydraulic walking chassis Engineering steel tracks
Hydraulic walking chassis Engineering steel tracks
Hydraulic walking chassis Engineering steel tracks
Hydraulic walking chassis
Track ground length 2150mm 2500mm 2500mm 7000mm 8000mm
Track chassis width 1700mm 1800mm 1800mm 2250mm 2250mm
Hydraulic high outriggers 4 4 4 4 4
Machine power Yuchai four-cylinder diesel engine Yuchai six-cylinder diesel engine Cummins six-cylinder diesel engine Weichai six-cylinder diesel engine Weichai six-cylinder diesel engine
Host power 77.3kW 110kW 132kW 176kW 220kW
Technical parameters Applicable rock strength F=6~20 F=6~20 F=6~20 F=6~20 F=6~20
Drill pipe diameter Φ89/Φ102 Φ89/Φ102/Φ114 Φ89/Φ102/Φ114 Φ102/Φ114/Φ127 Φ102/Φ127/Φ146
Drilling diameter 95-254mm 95-350mm 95-350mm 105-550mm 105-800mm
Drilling depth 200m 300m 500m 800m 1200m
Drill pipe length 1.5/2/3m 1.5/2/3m 1.5/2/3m 3/6m 6m
One-time advancement length 3.6m 4m 4m 6m 6m
Footage efficiency 10-35m/h 15-35m/h 15-35m/h 10-35m/h 10-35m/h
Rotary torque 5300-7600N.m 6200-8500N.m 8500-12000N.m 9000-18000N.m 12000-24000N.m
Power head lifting force 15T 22T 22T 47T 57T
Winch lifting force 1T 2T 2T 2.5T 2.5T
Climbing angle 30° 30° 30° 21° 21°
Walking speed 2.5km/h 2.5km/h 2.5km/h 5km/h 6.4km/h.
