DRILLING RIG HUAXIAMASTER XYC Series Vehicle-mounted Hydraulic Core Drilling Rig 1、Introduction to XYC Series Vehicle-mounted Hydraulic Core Drilling Rig XYC series truck-mou

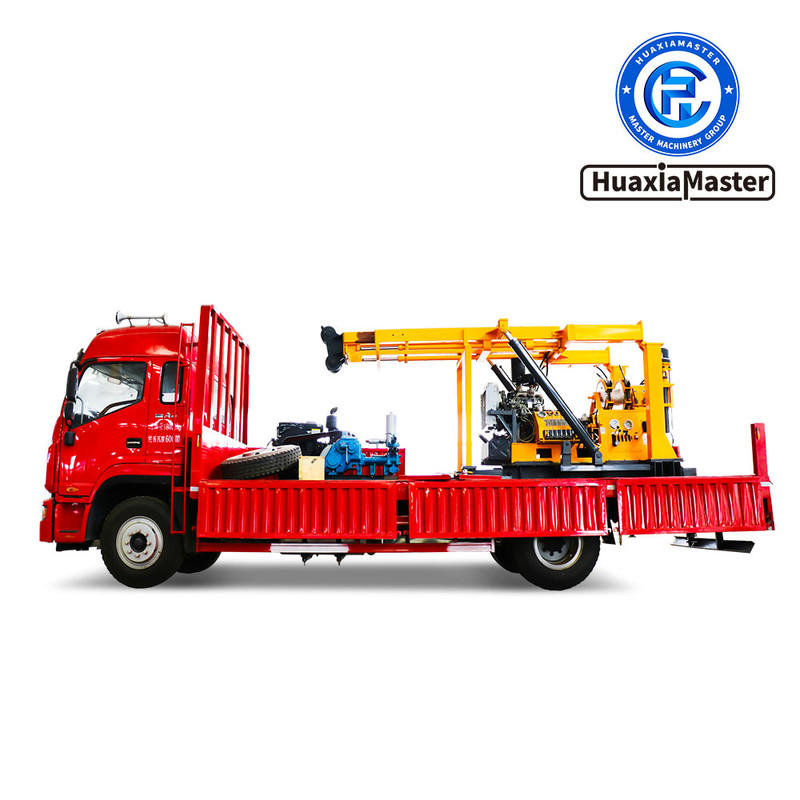

1、Introduction to XYC-3 Truck-mounted Hydraulic Core Drilling Rig
XYC-3 vehicle mounted hydraulic core drilling rig is a multi-functional hydraulic vehicle-mounted vertical shaft rotary drilling rig, which is mainly used in geological census exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, roadbed grouting hole drilling and direct grouting holes, civil wells, etc.
2、Features of XYC-3 Truck-mounted Hydraulic Core Drilling Rig
2.1 The truck chassis is a medium truck chassis. The rig transmission system, winch, mud pump and other important accessories are installed on the chassis. The layout is reasonable and compact, and the operation is simple.
2.2 BW-250 mud pump is equipped with high pressure and large flow to ensure the drilling depth and diameter.
2.3 The drilling rig is equipped with a mobile device, which can realize the forward and backward movement of the drilling rig host and facilitate wellhead operation.
2.4 The rig tower is equipped with hydraulic automatic telescopic drilling tower, which is safe and convenient to operate.
2.5 The hydraulic system realizes the control of feed pressure and speed to meet the needs of drilling in different strata.
3、Parameters of XYC-3 Truck-mounted Hydraulic Core Drilling Rig
Model XYC-3

Overall machine parameters Drilling depth 600m
Open hole dia 600mm
End hole dia 75mm
Drill pipe dia 60mm
Drilling angle 75-90°
Matching power YunneiYN27/39kW
Weight 22000kg
(L*W*H)Dimension 9000*2500*3600mm

Vertical shaft Forward speed 32-1057r/min
Reverse speed 29-137r/min
Stroke 600mm

Winch Lifting force 3000kg
Lifting speed 0.5-1.9m/s
Wire rope dia 12.5mm
Wire rope capacity 65m

Derrick Height 6.5m
Rated load 18t
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
