1、Introduction to XYX-3 Wheel Hydraulic Core Drilling Rig

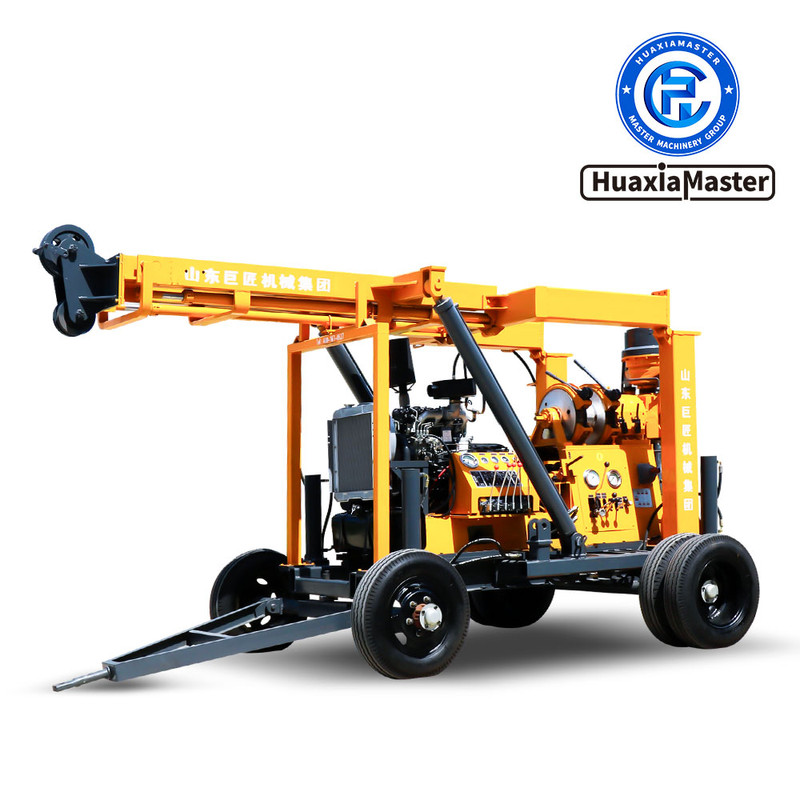

XYX-3 wheeled hydraulic core drilling rig is a multi-functional traction hydraulic vertical rotary drilling rig. It is mainly used for the general survey and exploration of metal and non-metallic solid minerals, and also can be used for engineering geological exploration, hydrogeological survey, general survey and exploration of oil and gas fields, and well drilling.
2、Features of XYX-3 Wheel Hydraulic Core Drilling Rig
2.1 The drilling rig is equipped with a wheeled traveling mechanism and hydraulic cylinder support which is convenient for moving the whole machine and horizontal adjustment of the drilling rig.
2.2 With oil pressure feed mechanism, the drilling efficiency is improved.
2.3 The drilling rig is equipped with a hydraulic chuck, which can reverse the rod without stopping the machine, with high working efficiency, convenient, safe and feasible operation.
2.4 It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, so as to grasp the situation in the hole.
2.5 The tower lifting and lowering are operated by hydraulic pressure, which is convenient and feasible.
2.6 The diesel engine is electrically started to reduce the labor intensity of workers.
3、Parameters of XYX-3 Wheel Hydraulic Core Drilling Rig
Model XYX-3

Overall machine parameters Drilling depth 600m
Open hole dia 600mm
End hole dia 75mm
Drill pipe dia 60mm
Drilling angle 75-90°
Matching power YunneiYN27/39kW
Weight 3600kg
L*W*H)Dimension 4500*2600*3300mm

Vertical shaft Forward speed 32-1057r/min
Reverse speed 29-137r/min
Stroke 600mm

Winch Lifting force 3000kg
Lifting speed 0.5-1.9m/s
Wire rope dia 12.5mm
Wire rope capacity 65m
Derrick Height 6.5m
Rated load 18t
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
