XJ Series Well Washing Machine HUAXIAMASTER

XJ Series Well Washing Machine

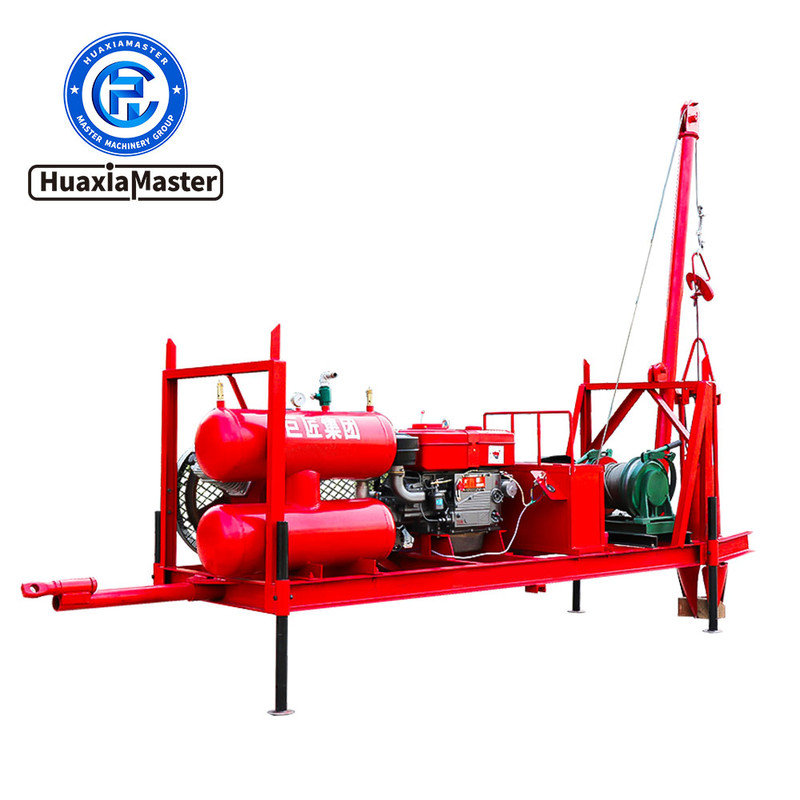

1. Introduction of XJ Series Well Washing Machine
   The well washer is a powerful well washing equipment developed by Shandong Master Machinery Group to clean the dirt in the well, open the waterway, and dredge the seepage holes. The well washer adopts the air pressure principle. When washing the well, the water level in the well needs to be about 10 meters. The compressed gas is pressed into the well through the air duct lowered into the well, causing a pressure difference between the upper and lower water surfaces in the well, so that the water moves up and down in the well, violently impacting the bottom and wall of the well, destroying the mud skin on the wall of the well, and the sewage is discharged to the ground through the water pipe, thereby achieving the purpose of washing the well. The well washer has a fast cleaning speed, good effect, simple structure, convenient operation, and reliable work.
   This series of well washing machines can wash wells to a depth of 100-300 meters, solving the problem of low operating efficiency of traditional well washing machines and reducing well washing costs. It is now widely used in the cleaning of farmland irrigation wells, new and old deep water wells, and has become an important well washing product for national water conservancy bureaus, national drought relief service teams, and engineering bidding and procurement. If you need to retrieve the water pump or stones in the well, you can choose to use a grab cone.

2. Features of XJ Series Well Washing Machine
   2.1 Equipped with outriggers, it is convenient for the machine to be leveled during operation and ensure the stability of the machine body.
   2.2 Diesel engine or electric motor power source can be selected according to actual needs of customers.
   2.3 The diesel engine can be started electrically, which reduces the operator’s labor intensity and is convenient to start in cold seasons.
   2.4 Utilizing the air pressure principle, it has strong power and efficient well washing.
   2.5 Equipped with traction frame and wheeled traveling mechanism, it is convenient to move to other places.
   3.Parameters of XJ Series Well Washing Machine
   Model XJ-1 XJ-2 XJ-3
   Well washing rod Φ76*3mm
   Air compressor flow 3.0m³/min 4.0m³/min 6.0m³/min
   Well washing depth 100m 180m 300m
   Machine weight 900kg 1300kg 1500kg
   Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
