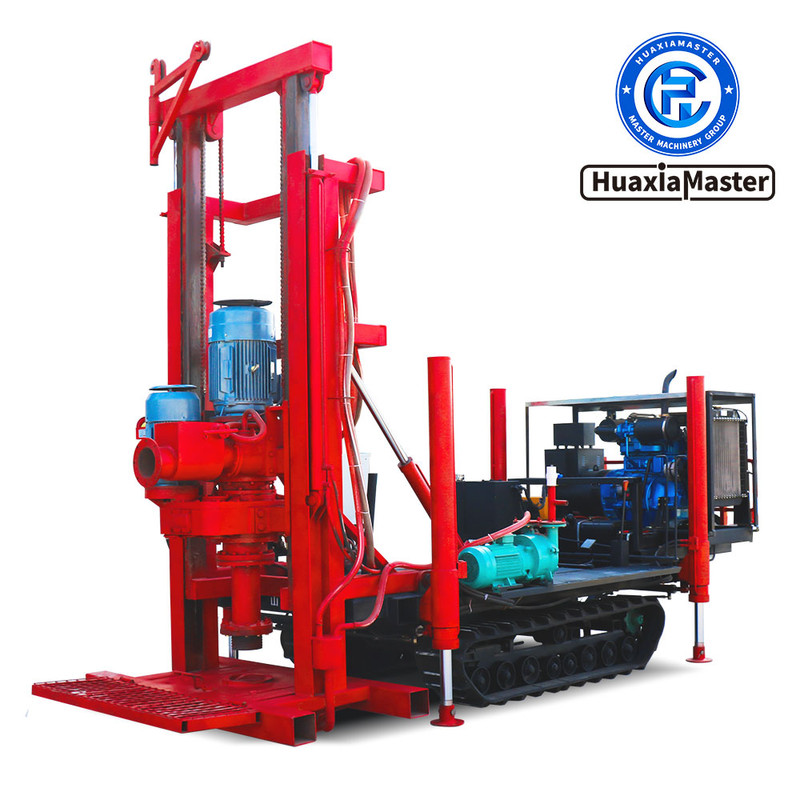

JFD Series Crawler Reverse Circulation Water Well Drilling Rig

1. Introduction of JFD Series Crawler Reverse Circulation Water Well Drilling Rig
   The rotary water well drilling rig with reverse circulation well washing medium is referred to as reverse circulation drilling rig. Its core lies in the unique “reverse circulation” working mode. The drilling fluid naturally flows into the annular gap between the drill pipe and the well wall directly to the bottom of the well, and then carries the cut drill cuttings back to the wellhead through the inner cavity of the drill pipe, and is discharged to the water supply pool through the faucet and the slag discharge pipe, and is recycled after sedimentation and clarification. This “outside down and inside up” circulation method is particularly good at handling large-diameter drilling operations in complex formations such as pebbles and gravel, and has achieved efficient slag discharge capabilities far exceeding traditional drilling rigs. It is mainly used in the fields of water well drilling and engineering bored pile drilling.

2. Features of JFD Series Crawler Reverse Circulation Water Well Drilling Rig
   2.1 The mud pump has strong suction, high rising flow rate, and strong pipeline slag discharge capacity. It can continuously and quickly discharge the cut drilling slag or pebbles out of the hole, reducing the number of repeated cutting or grinding and significantly improving the construction speed.
   2.2 The power head has large rotation torque, which is more suitable for large-diameter drilling operations.
   2.3 Equipped with crawler walking chassis, no need for manual movement, making it more convenient to move the machine.
   2.4 Equipped with hydraulic legs to level the drilling rig and ensure the stability of the machine body.
   2.5 There is ample driving space on the crawler chassis, making operation more convenient.
   2.6 The layout of the operating handle and distribution box is compact and reasonable, which is convenient for centralized control.
   2.7 The slide adopts heavy-duty structural design, and the key parts are shock-proof and wear-resistant, with a long service life and low failure rate.

3. Parameters of JFD Series Crawler Reverse Circulation Water Well Drilling Rig
   Drilling rig specifications JFD-5 JFD-6 JFD-6S JFD-7S
   Drilling diameter 300-1000mm 500-1500mm 500-1800mm 500-2500mm
   Drilling depth 40-80m 20-100m 30-200m 30-200m
   Drill pipe specifications 140*2000mm 168*2000mm 168*2000mm 194*2000mm
   Generator power 50kW 50kW 75kW 100kW
   Hydraulic pump motor power 7.5kW 15kW 11kW 22kW
   Mud pump motor power 15kW 22kW 30kW 37kW
   Rotary motor power 7.5kW 11kW 5.5kW*2 7.5kW2
   Rotation torque 18kN 20kN 26kN 30kN
   Rotation speed 13rpm 13rpm 13rpm 10rpm
   Vacuum pump motor power 7.5kW 7.5kW 7.5kW 11kW
   Winch motor power 1kW 1kW 1kW 1kW
   Maximum lifting weight of winch 500kg 500kg 500kg 500kg
   Track chassis Rubber Wire Track Rubber Wire Track Rubber Wire Track Engineering steel tracks
   Travel motor power 7.5kW 7.5kW 7.5kW 22kW
   Walking style Gearbox travel Gearbox travel Gearbox travel Hydraulic travel
   L W * H (With generator set) 4.2*1.9*2.4m 4.3*2*2.2m 4.5*2.2*2.4m 5.5*2.4*2.6m
   Machine weight (With generator set) 5T 6.5T 7T 10T
   Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
