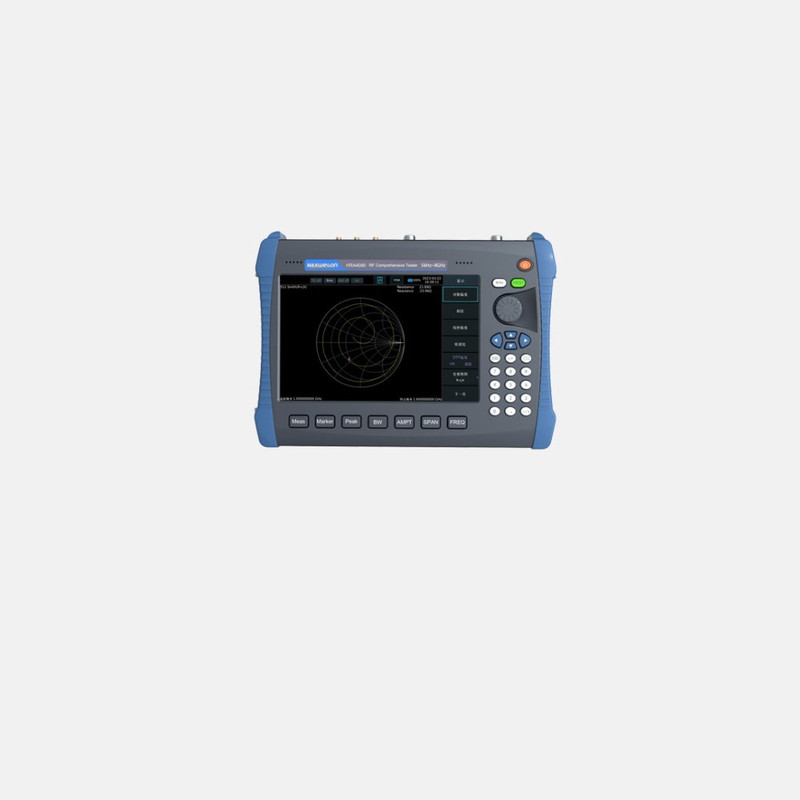

HRA4080 RF Comprehensive Tester

HRA4080 RF integrated tester is a wideband, high-performance RF integrated tester, the measurement frequency covers 5kHz~8GHz, and can be used in both indoor and outdoor environments.

The product adopts a 10.1-inch LED backlit high-brightness display, supports multi-touch; integrates spectrum analyzer, vector network analyzer, antenna and feeder measurement, vector voltmeter, interference location, field strength measurement function and power measurement and other functions and All-in-one, built-in GPS/Beidou positioning module is suitable for field use.

Products are widely used in various fields such as aerospace, microwave communication, satellite navigation, radar detection, electronic detection and countermeasures, and precision guidance.

Key Features

︎Frequency Range: 5kHz~8GHz

︎Noise level: Exceed <-162dBm@1GHz

︎Resolution bandwidth: 1Hz~5MHz

︎Maximum real-time bandwidth: 40MHz

︎SSB Phase Noise: < -110dBc/Hz @1MHz

︎Up to 80dB Medium Image Rejection.
