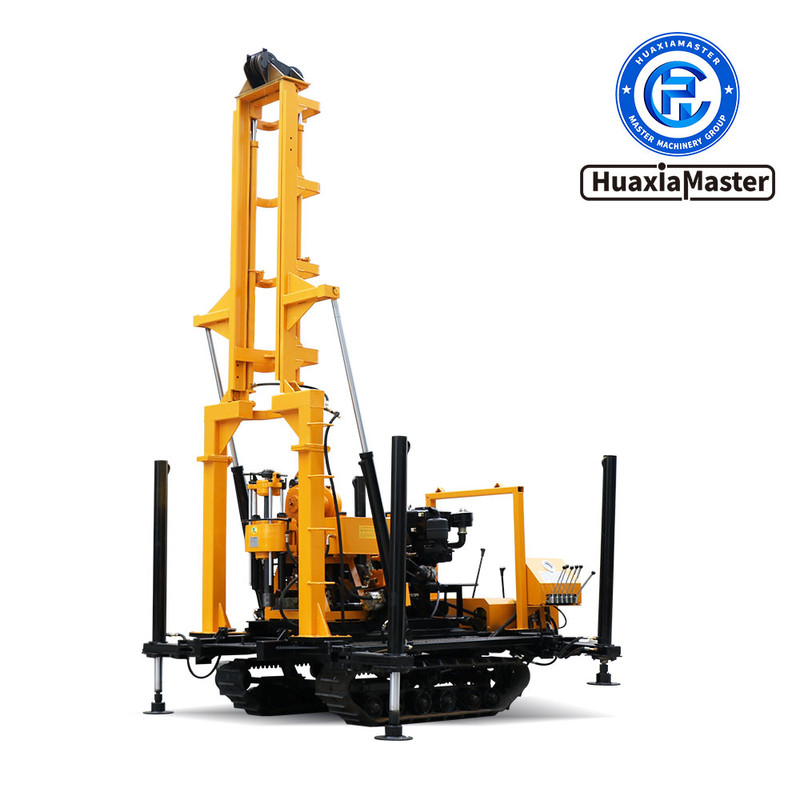

XYD Series Crawler Hydraulic Core Drilling Rig

1、Introduction to XYD Series Crawler Hydraulic Core Drilling Rig
XYD series crawler hydraulic core drilling rig is a kind of drilling rig equipped with crawler chassis and hydraulic derrick to meet the needs of high speed, high efficiency and strong maneuverability in field exploration. The drilling rig can realize mobile operation in uneven areas such as hills and virgin forests.
2、Features of XYD Series Crawler Hydraulic Core Drilling Rig
2.1 Rise and fall of derrick can be easily controlled by operation valves, which saves time and labor, and is safe and reliable.
2.2 The chassis adopts steel wire rubber crawler, which can reduce the noise of walking and not damage the road surface when walking on urban roads.
2.3 The chassis is equipped with high hydraulic legs, which can be used for leveling the drilling rig, can also realize self-loading and unloading without crane, saving a lot of lifting time and cost.
2.4 The 24V electric start diesel engine is used to reduce the operator’s labor intensity, making it more convenient to start in cold seasons.
2.5 BW-160 mud pump has high pressure and high flow rate, which ensures drilling depth and borehole diameter.
2.6 Configuration of the moving device can realize the front and back movement of the main machine and facilitate the operation of the wellhead.
3、Parameters of XYD Series Crawler Hydraulic Core Drilling Rig
Drilling rig model XYD-100 XYD-150 XYD-200 XYD-130YY XYD-200YY
Overall machine parameters Drilling depth 100m 150m 200m 130m 200m
Opening diameter 219mm 325mm 400mm 325mm 400mm
final hole diameter 75mm 75mm 75mm 75mm 75mm
Drill pipe diameter 42mm 42/50mm 42/50mm 42/50mm 42/50mm
Active drill pipe ⁴⁶⁄₅₁*4200mm ⁴⁶⁄₅₁*4200mm ⁵³⁄₅₉*4200mm ⁵³⁄₅₉*4200mm ⁵³⁄₅₉*4200mm
Drilling inclination 90° 90° 90° 90° 90°
Drilling rig weight 2900kg 3000kg 3100kg 3800kg 4000kg
Overall dimensions 3600*1900*2200mm 3600*1900*2200mm 3600*1900*2200mm 3600*2000*2400mm 3600*2000*2400mm
Vertical shaft Vertical shaft speed 142、285、570 r/min 140、295、470、790、1010r/min 64、128、287、557r/min 142、285、570r/min 64、128、287、557r /min
Vertical axis travel 450mm 450mm 450mm 450mm 450mm
Crawler chassis Crawler specification 350mm*90*54 350mm*90*54 350mm*90*54 350mm*90*48 360mm*90*48
Climbing angle 35° 35° 35° 35° 35°
Walking speed 10km/h 10km/h 10km/h 10km/h 10km/h
Hydraulic leg height 1500mm 1500mm 1500mm 1500mm 1500mm

Winch Single rope lifting capacity 10kN 11kN 24kN 11kN 24kN
Single rope lifting speed 0.41、1.64m/min 0.41、1.64m/min 0.41、1.64m/min 0.41、1.64m/min 0.41、1.64m/min
Wire rope diameter 12mm 12mm 12mm 12mm 12mm
Wire rope capacity 35m 35m 35m 35m 35m
Rig tower Effective height 6m 6m 6m 6m 6m
Rated load 5t 5t 5t 13t 13t
Mud pump Flow 95L/min 160L/min 160L/min 160L/min 160L/min
Maximum pressure 1.3Mpa 1.3Mpa 1.3Mpa 1.3Mpa 1.3Mpa
Suction pipe diameter 50mm 50mm 50mm 50mmm 50mm
Outlet pipe diameter 32mm 32mm 32mm 25mm 25mm
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
