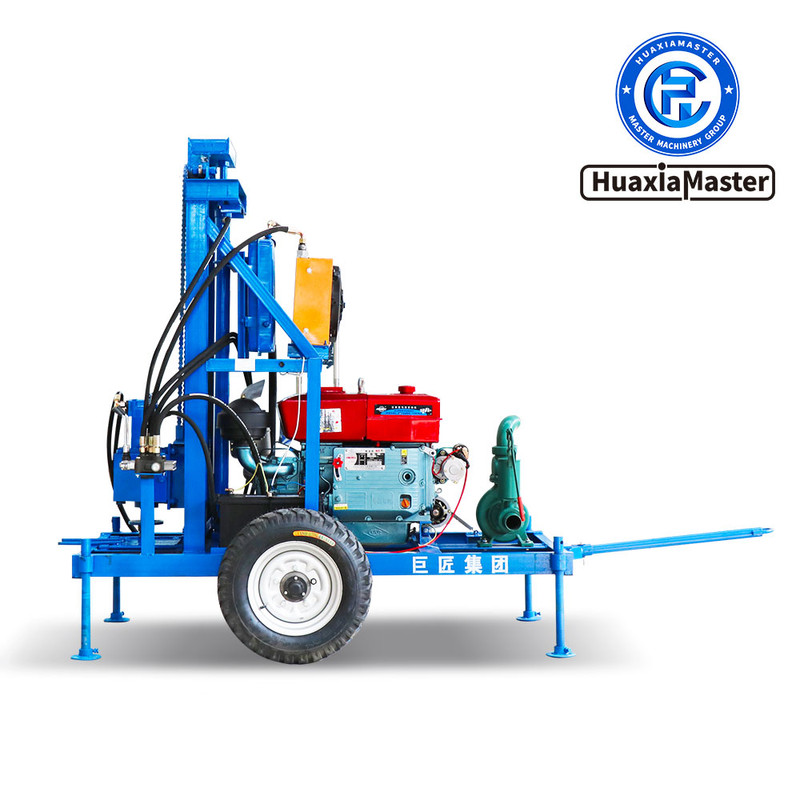

SJCY Traction Diesel Hydraulic Water Well Drilling Rig

1、Introduction to SJCY Traction Diesel Hydraulic Water Well Drilling Rig
SJCY towable diesel hydraulic water well drilling rig is a hydraulic drilling rig developed and widely promoted by HUAXIAMASTER GROUP. It is suitable for drilling in soil layer, quicksand layer and a small amount of rock and soil layer. It is mainly used for drilling civil draft wells, ground source heat pump air conditioning wells, engineering dewatering wells, drought-resistant wells, industrial wells, etc.‌
2、Features of SJCY Traction Diesel Hydraulic Water Well Drilling Rig
2.1 The diesel engine is equipped with electric starting, which is convenient to start and reduces the labor intensity of the operator.
2.2 The drilling rig adopts hydraulic working principle and is equipped with radiator, so the drilling rig can work continuously and efficiently.
2.3 Equipped with high-power hydraulic motor, the power head can rotate forward and backward.
2.4 The drill frame is equipped with hydraulic oil cylinder, and the oil pressure can be raised and lowered through the operating handle.
2.5 The drilling rig has its own water pump, which has reasonable structure, compact layout and good slag removal effect.
3、Parameters of SJCY Traction Diesel Hydraulic Water Well Drilling Rig
Drilling rig specifications SJCY
Machine power Single cylinder diesel engine/22 HP
Vehicle weight 560KG
Overall machine size 1900*980*1800mm
Power head BM5-200 Hydraulic Motor
Pressurized system Hydraulic cylinder booster
Outrigger four screw rods
Drill pipe specifications 50*1500mm
Drilling diameter 80-300mm
Drilling depth 0-120m
Slide travel 2400mm
Lift height 2600mm
One-time advancement length 1500mm
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
