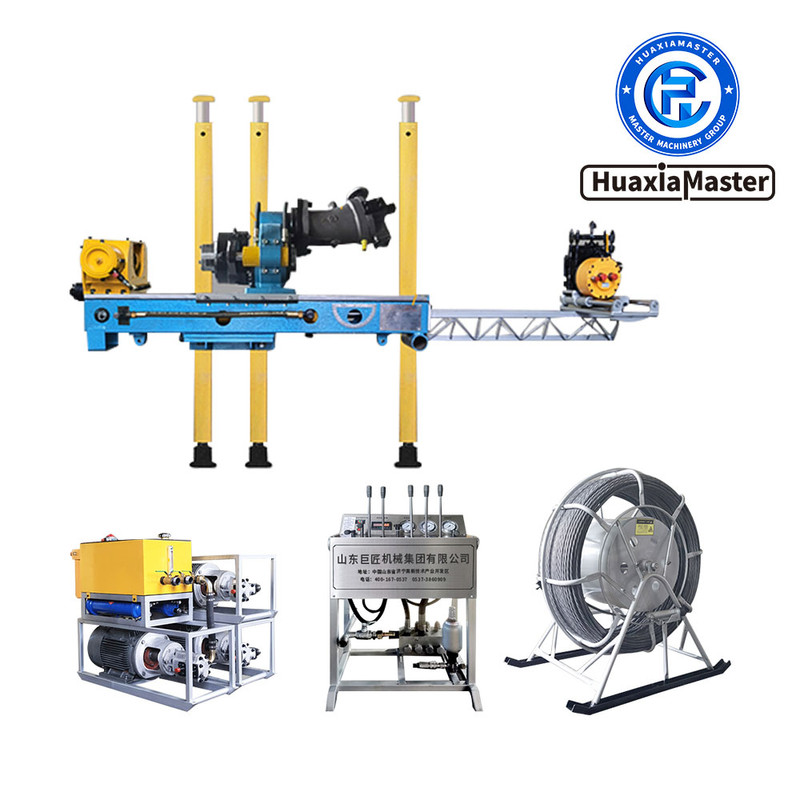

KY-6075 Fully Hydraulic Steel Cable Coring Exploration Drilling Rig
Цена: 20000 руб.
Минимальный заказ: 1 шт.
- Introduction of KY-6075 Fully Hydraulic Steel Cable Coring Exploration Drilling Rig
KY-6075 fully hydraulic exploration drilling rig can meet the most advanced steel strand wire core drilling technology. In the process of drilling, when the core is full of the inner pipe of the core, there is no need to lift the drill pipe, but take the drill pipe as the channel to lift the inner pipe of the core stored outside the hole with the help of prestressed steel strand and special fishing tools to obtain the core. In view of the characteristics of high strength and small deformation of prestressed steel strand, the steel strand wire core drilling rig can achieve 360 °all-round drilling.
2.Features of KY-6075 Fully Hydraulic Steel Cable Coring Exploration Drilling Rig
2.1 In the process of drilling, it is unnecessary to lift the core, and 360 °core drilling can be realized.
2.2 Reduce the auxiliary time of lifting drill pipe and increase the pure drilling time. The deeper the borehole is, the more significant the economic effect is.
2.3 If the core is blocked, it can be immediately fished out to improve the core recovery rate.
2.4 lt can reduce the wear of drill pipe thread during screwing and unloading, and the wear of bitcleaning, prolong the service life of drill pipe and reduce the consumption of pipe material.
2.5 Reduce flushing fluid suction and hole wall pressure balance, so as to reduce accidents in thehole.
2.6 Reduce the mechanical wear of lifting and delivering drill pipe, and increase the service life ofthe drill.
2.7 Reduce borehole curvature and improve borehole quality.
2.8 It is conducive to drilling compiex stratum and avoiding hoie wait coliapse and biock faiing.
2.9 The inclinometer can be set in the drill pipe with steel strand wire to measure the inclinometer. - Parameters of KY-6075 Fully Hydraulic Steel Cable Coring Exploration Drilling Rig
Model KY-6075
Bit dia 60mm 75mm
Core diameter 41.5mm 49.5mm
Drill pipe diameter 56mm 71mm
Drilling depth 500m 400m
Drill pipe length 1500mm
Drilling angle 0-360°
Spindle speed 800-1060r/min
Spindle output torque 184-550N.m
Feeding Stroke 900mm
Rated pulling force 60kN
Rated pulling speed >0.3m/s
Oil supply mode Double gear pump
Oil pump type CBF-F80/10
Displacement Front pump80/63ml Rear pump10ml
System pressure Front pump16MPa Rear pump12MPa
Hydraulic oil type Antiwear hydraulic oil YB-N46(Summer)/YB-N32(Winter)
Hydraulic motor model Manual variable motor L6V80
Hydraulic pump station motor power 55kW
Main engine weight 380kg
Operating table 60kg
Pumping station 550kg
Host size 1600*400*300mm
Operating table size 610*1150*530mm
Power car size 1340*1010*560mm
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
Бренд: HUAXIAMASTER
Модель: KY-6075
Страна: 中国
Вес: 6200 кг
Размеры: 450/210/250
Гарантия производителя: есть
Чтобы купить KY-6075 Fully Hydraulic Steel Cable Coring Exploration Drilling Rig оптом по цене 20000 руб., свяжитесь с поставщиком. Компания поставщик — Master (Jining) Heavy Industry Machinery Co Ltd из города Гонконг (Central and Western). Минимальная сумма оптового заказа: 1000000 руб. Минимальная партия 1 шт. Способы оплаты: наличными, безналичная оплата, кредитные карты, электронные деньги.
