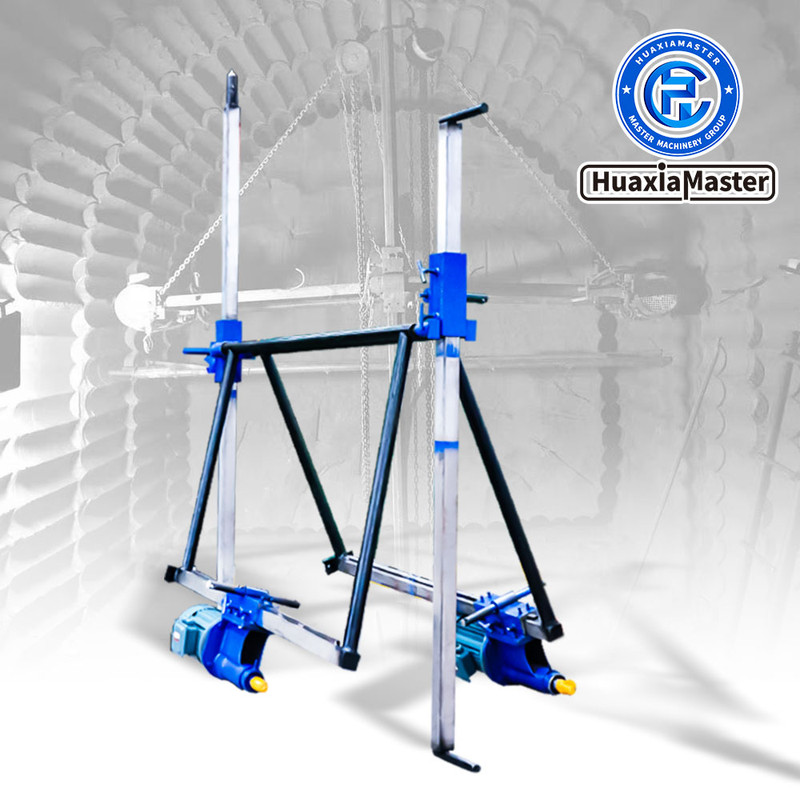

HZD-P Horizontal Water Grinding Drilling Rig
Цена: по запросу
Минимальный заказ: 1 шт.
- Introduction to HZD-P Horizontal Water Grinding Drilling Rig
The HZD-P horizontal water grinding drilling rig integrates high-pressure water flow and diamond circular cutting technology, which can efficiently penetrate reinforced concrete and hard rock formations, achieving precise drilling and coring. It is an environmentally friendly, low-disturbance, and highly adaptable horizontal drilling equipment. When used with a splitting rod, it can quickly promote tunnel excavation, specializing in mountain tunnel drilling and tunnel construction fields. Meanwhile, it is widely applied in scenarios such as trenchless pipeline laying, municipal pipe jacking, and building structure drilling. With its efficient drilling performance and excellent cost-effectiveness, it has won the favor of numerous construction and tunnel construction units.
2.Features of HZD-P Horizontal Water Grinding Drilling Rig
2.1 The drilling rig can drill at 360° in the forward direction, easily excavating arched or circular tunnels in mountain bodies.
2.2 It is simple and labor-saving to operate, without the need for a large number of workers.
2.3 Compared with large excavation equipment, it has the same function but is inexpensive.
2.4 It features low vibration, low noise, and less dust, reducing harm to the ecological environment and surrounding people.
2.5 The structure of the drilling rig can be customized according to customers’ construction requirements. - Parameters of HZD-P Horizontal Water Grinding Drilling Rig
Specification Model HZD-5.5P11 HZD-5.5P12 HZD-5.5P21 HZD-5.5P22 HZD-7PS21 HZD-7PS22 HZD-7.5P21 HZD-7.5P22 HZD-6PS22T
Structural Type Single column, single power head Single column, double power heads Double columns, single power head Double columns, double power heads Double columns, single power head Double columns, double power heads Double columns, single power head Double columns, double power heads Double columns, double power heads
Motor Power 5.5kW*1 5.5kW*2 5.5kW*1 5.5kW*2 7kW*1 7kW*2 7.5kW*1 7.5kW*2 6kW*2
Applicable Voltage 380V 380V 380V 380V 380V 380V 380V 380V 380V
Motor Cooling Air-cooled Air-cooled Air-cooled Air-cooled Air-cooled Air-cooled Air-cooled Air-cooled Water-cooled
Drill Barrel Specification Φ160*650 Φ160*650 Φ160*650 Φ160*650 Φ160*650 Φ160*650 Φ160*650 Φ160*650 Φ160*650
Drill Barrel Rotating Speed 860r/min 860r/min 860r/min 860r/min 860r/min 860r/min 860r/min 860r/min 860r/min
Construction Angle 360° 360° 360° 360° 360° 360° 360° 360° 360°
Note: The product is continuously improved. Changes may be made without prior notice. Please refer to the actual product.
Бренд: HUAXIAMASTER
Модель: HZD-5.5P11 HZD-5.5P12 HZD-5.5P21 HZD-5.5P22 HZD-7PS21 HZD-7PS22 HZD-7.5P21 HZD-7.5P22 HZD-6PS22T
Страна: 中国
Вес: 6200 кг
Размеры: 450/210/250
Чтобы купить HZD-P Horizontal Water Grinding Drilling Rig оптом по цене по запросу, свяжитесь с поставщиком. Компания поставщик — Master (Jining) Heavy Industry Machinery Co Ltd из города Гонконг (Central and Western). Минимальная сумма оптового заказа: 1000000 руб. Минимальная партия 1 шт. Способы оплаты: наличными, безналичная оплата, кредитные карты, электронные деньги.
