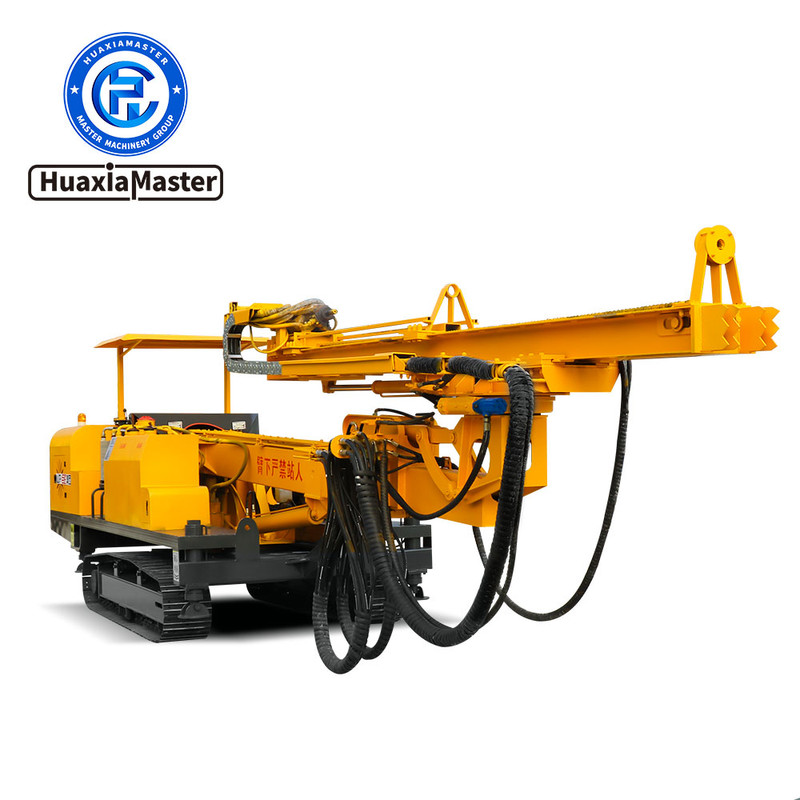

PMGZ Series Crawler High Lift Slope Anchor Drilling Rig
1. Introduction to PMGZ Series Crawler High Lift Slope Anchor Drilling Rig
The PMGZ series crawler high-lift slope anchor drilling rig is a construction equipment for geological disaster prevention and control projects. The drilling rig is equipped with a hydraulic telescopic boom, which can be extended section by section through the hydraulic system to easily cover the slope area with a large vertical height and a long horizontal distance. The boom has a pitch adjustment function. Combined with the telescopic action, it can accurately locate any slope position and perform vertical, inclined or horizontal hole drilling to meet the needs of complex anchoring construction. It is mainly used in landslide control and dangerous rock anchoring projects. At the same time, the drilling rig is also widely used in urban deep foundation pit support, anti-floating anchors and foundation grouting reinforcement engineering holes, blasting holes in blasting projects, tunnel anchor projects, tunnel pipe shed support, and water conservancy and hydropower high slope rock anchoring projects.
2. Features of PMGZ Series Crawler High Lift Slope Anchor Drilling Rig
2.1 Convenient high-altitude construction: The drilling platform is equipped with a drilling rig, an operating platform and a drilling tool placement platform, which makes it more convenient for construction workers to cooperate with construction at high altitudes.
2.2 There is no need to frequently move the drilling rig, and the high-lift telescopic arm can cover a large construction area, improving construction efficiency while avoiding the risk of landslides caused by the equipment being close to unstable slopes.
2.3 Support various drilling methods such as conventional down-the-hole drilling, pipe drilling, spiral drilling, etc., to efficiently cope with complex and changeable formation conditions.
2.4 Equipped with a large torque hydraulic power head, it has strong drilling capability and improves construction efficiency.
2.5 Equipped with an engineering steel crawler chassis, the drilling rig can move easily in various complex terrains.
2.6 The key components are thickened and treated with wear-resistant treatment, the whole machine is sturdy and durable, the quality is reliable, and the failure rate and maintenance cost are reduced.
3. Parameters of PMGZ Series Crawler High Lift Slope Anchor Drilling Rig
Drilling rig specifications PMGZ-18 PMGZ-22 PMGZ-30 PMGZ-35
Performance parameters Lifting height 18m 22m 30m 35m
Maximum drilling diameter 250mm 250mm 250mm 250mm
Maximum drilling depth 50m 50m 50m 50m
Drill pipe specifications φ50/φ76/φ89 φ50/φ76/φ89 φ50/φ76/φ89 φ50/φ76/φ89
Ways of advancement Hydraulic motor + Chain Hydraulic motor + Chain Hydraulic motor + Chain Hydraulic motor + Chain
One-time push depth 3.5m 3.5m 3.5m 3.5m
Machine parameters Diesel engine 6108 six-cylinder Yuchai engine 6108 six-cylinder Yuchai engine 6108 six-cylinder Yuchai engine 6108 six-cylinder Yuchai engine
Diesel engine power range 92-130kW 92-130kW 92-130kW 92-130kW
Hydraulic oil pump 63/63/32 63/63/32 63/63/32 63/63/32
Hydraulic Radiator Large air cooling radiator * 2 Large air cooling radiator * 2 Large air cooling radiator * 2 Large air cooling radiator * 2
Drill arm Strengthened double-rod drill arm Strengthened double-rod drill arm Strengthened double-rod drill arm Strengthened double-rod drill arm
Drilling platform rotation angle 360° 360° 360° 360°
Power head Dual hydraulic motor power head Dual hydraulic motor power head Dual hydraulic motor power head Dual hydraulic motor power head
Drilling rig counterweight telescopic length 1m 1m 1m 1m
Frame telescopic / / It can be extended 1 meter in one direction, front and back; it can be extended 2 meters in two directions. It can be extended 1 meter in one direction, front and back; it can be extended 2 meters in two directions.
Hydraulic outriggers Four pieces Four pieces Four pieces Four pieces
Outrigger extension / The horizontal extension is 1.5 meters on one side and 3 meters on both sides. The horizontal extension is 1.5 meters on one side and 3 meters on both sides. The horizontal extension is 1.5 meters on one side and 3 meters on both sides.
Chassis rotation angle 360° 360° 360° 360°
Track chassis size 4000*2600mm 4500*2800mm 4500*3000mm 4800*3000mm
Track shoe width 400mm 500mm 500mm 500mm
Chassis travel motor TM22 TM40 TM40 TM60
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
