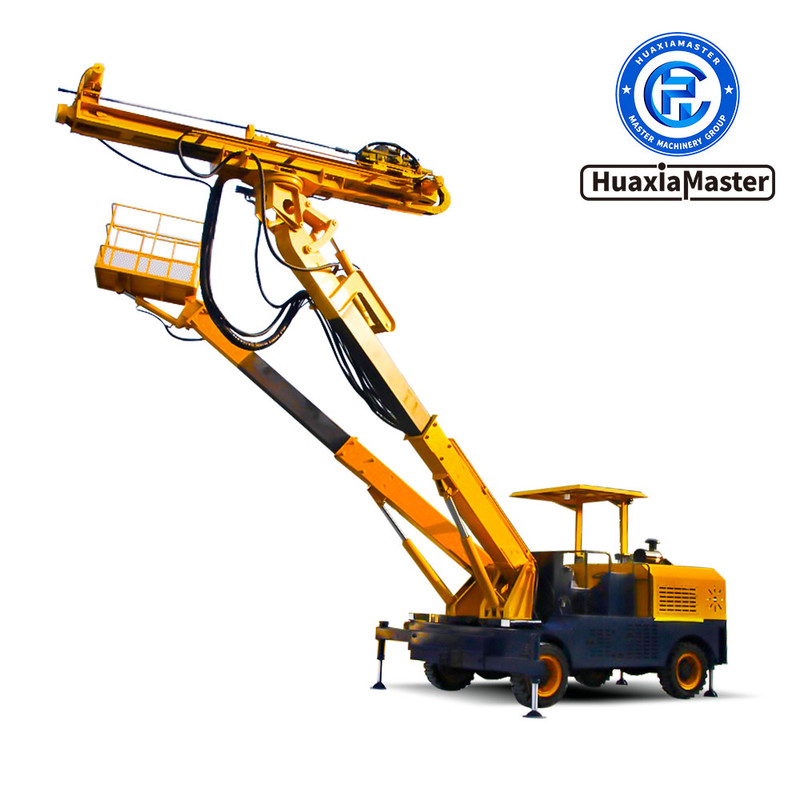

LSMGZ Series Wheeled Tunnel Anchor Drilling Rig
Цена: по запросу
Минимальный заказ: 1 шт.
- Introduction to LSMGZ Series Wheeled Tunnel Anchor Drilling Rig
The wheeled tunnel anchor drilling rig is a tunnel-specific engineering machinery equipment developed based on the construction needs of drilling and anchoring operations in tunnels. It is mainly used to accurately drill holes in the tunnel surrounding rock and assist in the installation of anchor rods, anchor cables and other supporting structures, and cooperate with grouting to enhance rock stability, prevent collapse, and ensure construction safety. The excellent operability combined with powerful power significantly improves construction efficiency and operation accuracy, and has been recognized by the majority of construction units. - Features of LSMGZ Series Wheeled Tunnel Anchor Drilling Rig
2.1 Omnidirectional drilling: The drilling rig can rotate 360°, enabling all-round anchoring operations in the tunnel.
2.2 Diversified operating modes: Equipped with high-performance dual hydraulic power heads or automatic impact rock drill heads to achieve diversified operations.
2.3 Configuration diversity: The basket arm can be configured to provide a lifting platform for auxiliary work such as charging, clearing hazards, hanging nets, etc., reducing the tedious work of scaffolding and greatly improving the safety and efficiency of construction.
2.4 Easy to move: It adopts tire-type walking method, which makes it more convenient to move to other places.
2.5 Strong adaptability to terrain conditions: Suitable for various soil and rock conditions, showing strong environmental adaptability. - Parameters of LSMGZ Series Wheeled Tunnel Anchor Drilling Rig
Drilling rig specifications LSMGZ-8 LSMGZ-8S
Performance parameters Lifting height 8m 8m
Drilling diameter 50~300mm 50~300mm
Anchor diameter 45~89mm 45~89mm
One-time push depth 4m/customizable 4m/customizable
Ways of advancement Hydraulic motor + chain Hydraulic motor + chain
Machine parameters Working arm configuration 1 drill arm 1 drill arm + 1 basket arm
Drill rack rotation angle 360° 360°
Power head Double hydraulic power head Hydraulic rock drill Double hydraulic power head Hydraulic rock drill
Walking power Yunnei 490 diesel engine Yuchai 4108 diesel engine
Power 37kW 91kW
Walking style Four-wheel drive front and rear axle travel Four-wheel drive front and rear axle travel
Hydraulic oil pump motor 55kW 55kW
Hydraulic Radiator Large air cooling radiator * 2 Large air cooling radiator * 2
Solid tires 880.295-20⁄7.5 880.295-20⁄7.5
Hydraulic outriggers 4 pieces;
The front legs can be extended and retracted 1.2 meters in both directions. 4 pieces;
The front legs can be extended and retracted 1.2 meters in both directions.
Machine size 10.1*2.25*2.5m 10.1*2.25*2.5m
Machine weight 10T 12T
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
Бренд: HUAXIAMASTER
Модель: LSMGZ-8 LSMGZ-8S
Страна: 中国
Вес: 6200 кг
Размеры: 450/210/250
Чтобы купить LSMGZ Series Wheeled Tunnel Anchor Drilling Rig оптом по цене по запросу, свяжитесь с поставщиком. Компания поставщик — Master (Jining) Heavy Industry Machinery Co Ltd из города Гонконг (Central and Western). Минимальная сумма оптового заказа: 1000000 руб. Минимальная партия 1 шт. Способы оплаты: наличными, безналичная оплата, кредитные карты, электронные деньги.
