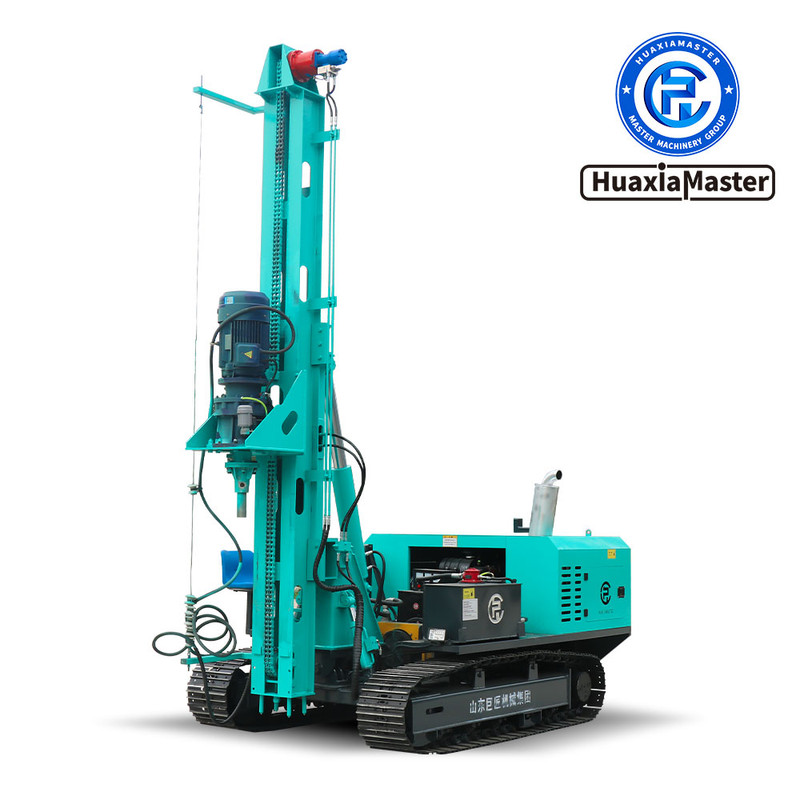

GFHY Series Photovoltaic Hydraulic Pile Driver

1. Introduction to GFHY Series Photovoltaic Hydraulic Pile Driver
   GFHY series photovoltaic hydraulic pile drivers are important equipment for the construction of photovoltaic power stations. They are mainly used for pile driving and drilling work of pile foundations to provide a solid foundation for the installation of photovoltaic brackets. Photovoltaic hydraulic pile drivers can choose spiral drilling, down-the-hole impact and other piling methods for construction operations. They are widely used in mountains, hills, deserts and other scenes, providing more efficient, environmentally friendly and reliable solutions for the construction of photovoltaic power stations.‌‌

2. Features of GFHY Series Photovoltaic Hydraulic Pile Driver
   2.1 It adopts advanced hydraulic system, the power head has large torque and high piling efficiency.
   2.2 The chassis adopts special engineering tracks, the track shoes are wide and stable, have good off-road performance, and can adapt to various complex and changeable terrains.
   2.3 The chassis can be equipped with a 360° rotation function to achieve all-round drilling construction.
   2.4 Equipped with drilling rig pitch cylinder, drilling rig swing cylinder and drilling rig telescopic compensation cylinder, the three-in-one system can accurately locate the pile hole position.
   2.5 Centralized control through the operating console, simple operation, safe and reliable.
   2.6 The overall welding of the equipment is rigorous, and the wear-resistant parts adopt heat treatment process to avoid structural deformation. It has a long service life and low failure rate.

3. Parameters of GFHY Series Photovoltaic Hydraulic Pile Driver
   Pile driver model GFHY-3500 GFHY-4000 GFHY-5000



Run parameters Power head Internal five-star motor Internal five-star motor Internal five-star motor
Main pump model CBG1-F050/050/032 CBG1-F050/050/032 CBG1-F050/050/032
Main pump pressure 20Mpa 20Mpa 20Mpa
Main valve flow 100L/min 100L/min 100L/min
Main pump speed 500-2000r/min 500-2000r/min 500-2000r/min
Main pump torque 2000N. m 2000N.m 2000N. m
Drilling rack travel 4000mm 4500mm 5500mm
Spiral hole diameter 300mm/Customizable 300mm/Customizable 300mm/Customizable
Auger drilling depth 0-3500mm 0-4000mm 0-5000mm
Pneumatic drilling diameter 90~400mm 90~400mm 90~400mm
Pneumatic drilling depth 1000~10000mm 1000~10000mm 1000~10000mm
Machine parameters Diesel engine 4108 Four cylinder 6108 Six cylinder 4108 Four cylinder 6108 Six cylinder 4108 Four cylinder 6108 Six cylinder
Rated Power 78kW 92kW 78kW 92kW 78kW 92kW
Walking speed 3-5 3-5 3-5
Climbing grade 30° 30° 30°
Track shoe width 400mm 400mm 400mm
L*W*H 4500*2200*2800mm 4500*2200*2800mm 4500*2200*2800mm
Weight 5.4T 5.7T 6T
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
